1、準備

1.1電腦信息

電腦版本：MacBook Pro 14 2023

處理器： M2 pro

內存 ：16GB

macos：13.4

Linux ：almalinux 9.1

Shell ：termius

1.2 前置程序

安裝Linux http://www.ruiqisteel.com/discuss/post/details/649fba2a34a19c3cbf04a7c5

安裝hadoop http://www.ruiqisteel.com/discuss/post/details/64b36e35f6b83a33b072c5fb

安裝hive http://www.ruiqisteel.com/discuss/post/details/64b36fb3f6b83a33b072c5ff

1.3 準備zeppelin安裝包

安裝包名稱：zeppelin-0.10.1-bin-all.tgz

（地址：https://mirrors.tuna.tsinghua.edu.cn/apache/zeppelin/zeppelin-0.10.1/）

2.將zeepline安裝包上傳到linux /opt/module/software/

3.解壓安裝

[nigel@nigel1 conf]$ cd /opt/module/software/

[nigel@nigel1 software]$ tar -zxvf zeppelin-0.10.1-bin-all.tgz -C /opt/module/

4.配置

[nigel@nigel1 software]$ cd /opt/module/

[nigel@nigel1 module]$ mv zeppelin-0.10.1-bin-all/ zeppelin

[nigel@nigel1 module]$ cd zeppelin/conf

[nigel@nigel1 conf]$ cp zeppelin-site.xml.template zeppelin-site.xml

[nigel@nigel1 conf]$ vi zeppelin-site.xml

將第30行8080改為9090

上一處property 的 value那里 改為nigel1

[nigel@nigel1 conf]$ cp zeppelin-env.sh.template zeppelin-env.sh

[nigel@nigel1 conf]$ vi zeppelin-env.sh

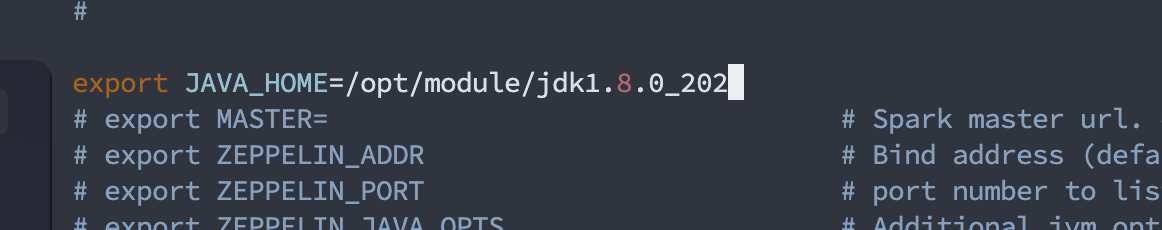

在19行處如圖修改

/opt/module/jdk1.8.0_202/

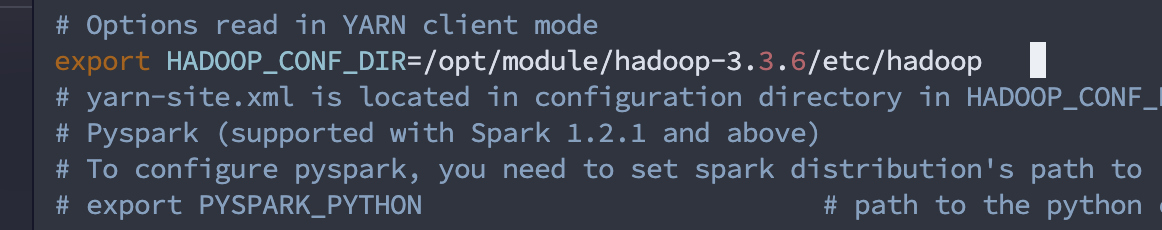

在89行處如圖修改

/opt/module/hadoop-3.3.6/etc/hadoop/

5.創建啟動和結束sh文件

[nigel@nigel1 bin]$ cd

[nigel@nigel1 ~]$ mkdir cd bin/

[nigel@nigel1 ~]$ cd bin/

[nigel@nigel1 bin]$ vim allstart.sh

添加以下內容

# cd /home/hduser/logs

echo "start hdfs ......"

start-dfs.sh

echo "start hdfs succed"

echo "start yarn ......"

start-yarn.sh

echo "start yarn succed"

#mr-jobhistory-daemon.sh start historyserver

#

echo "start HiveMetastore ....."

nohup hive --service metastore > ./HiveMetastore.log 2>&1 &

echo "start HiveMetastore succed"

echo " start HiveServer2 ...."

nohup hive --service hiveserver2 > ./HiveServer2.log 2>&1 &

echo " start HiveServer2 succed"

echo "starting zepplin"

/opt/module/zeppelin/bin/zeppelin-daemon.sh start

echo "delay 30 seconds"

sleep 30

echo "start zepplin succed"

[nigel@nigel1 bin]$ chmod 777 allstart.sh

[nigel@nigel1 bin]$ vim allstop.sh

添加以下內容

echo "stopping zepplin ......"

/opt/module/zeppelin/bin/zeppelin-daemon.sh stop

echo "stopping HiveMetaStore ......"

PID=`jps -ml|grep -w HiveMetaStore|awk {'print $1'}`

if [[ $PID ]]

then

`eval "kill -9 $PID"`

echo "succed stop HiveMetaStore"

fi

echo "stopping HiveServer2 ......"

PID=`jps -ml|grep -w HiveServer2|awk {'print $1'}`

if [[ $PID ]]

then

`eval "kill -9 $PID"`

echo "succed stop HiveServer2"

fi

#mr-jobhistory-daemon.sh stop historyserver

echo "stopping yarn ......"

stop-yarn.sh

echo "stopping hdfs ......"

stop-dfs.sh

echo "all Done”

[nigel@nigel1 bin]$ chmod 777 allstart.sh

[nigel@nigel1 ~]$ cp /opt/module/hive-3.1.2/conf/hive-site.xml /opt/module/zeppelin/conf/

[nigel@nigel1 ~]$ cp /opt/module/hadoop-3.3.6/share/hadoop/common/hadoop-common-3.3.6.jar /opt/module/zeppelin/interpreter/jdbc/

[nigel@nigel1 ~]$ cp /opt/module/hive-3.1.2/lib/hive-jdbc-3.1.2.jar /opt/module/zeppelin/interpreter/jdbc/

6.啟動zeppelin

[nigel@nigel1 bin]$ allstart.sh

[nigel@nigel1 ~]$ hdfs dfs -chmod -R 777 /tmp

[nigel@nigel1 ~]$ hdfs dfs -mkdir -p /user/hduser

[nigel@nigel1 ~]$ hdfs dfs -mkdir -p /user/nigel

[nigel@nigel1 ~]$ hdfs dfs -chmod -R 777 /user

在edge瀏覽器或Safari 輸網址的地方輸入 10.211.55.11:9090

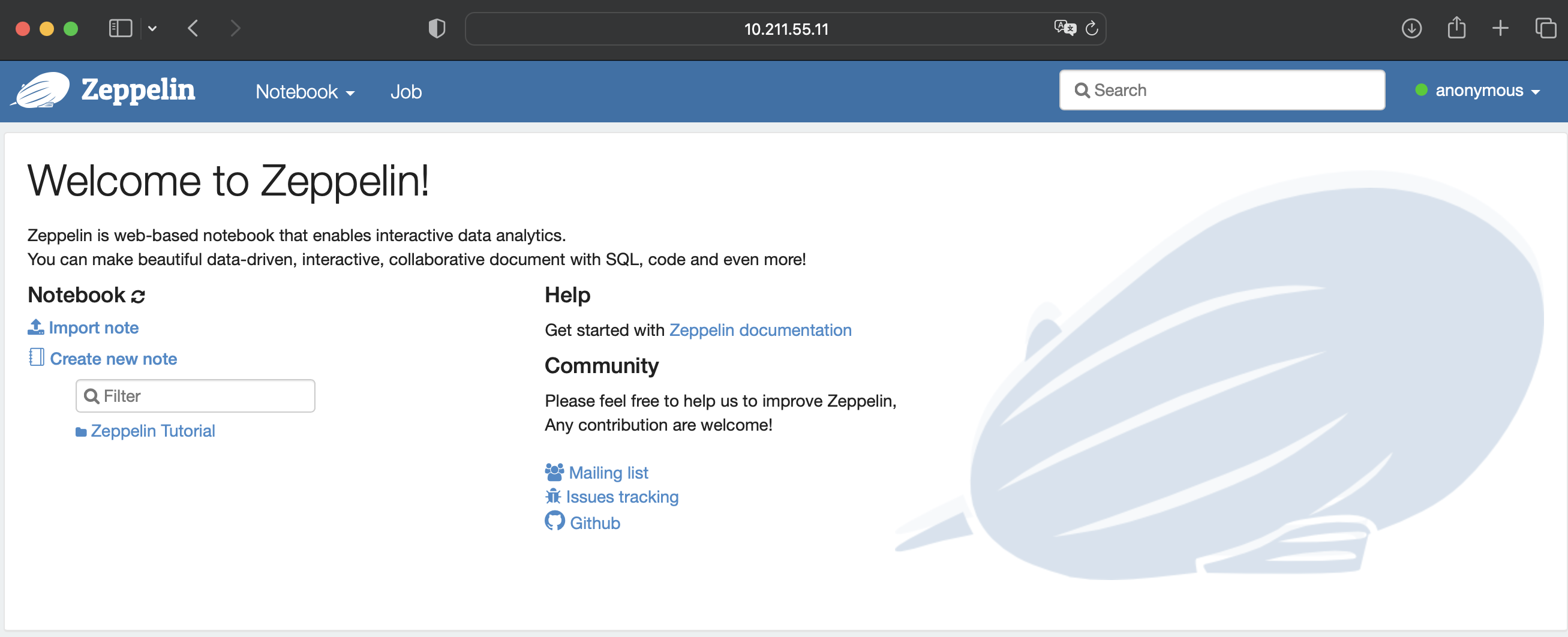

進入zeppelin

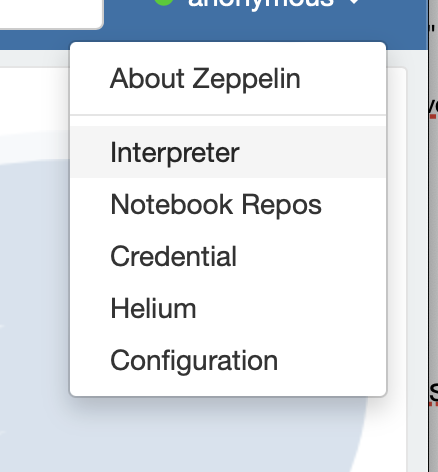

點右上角的anonymous 點interpreter

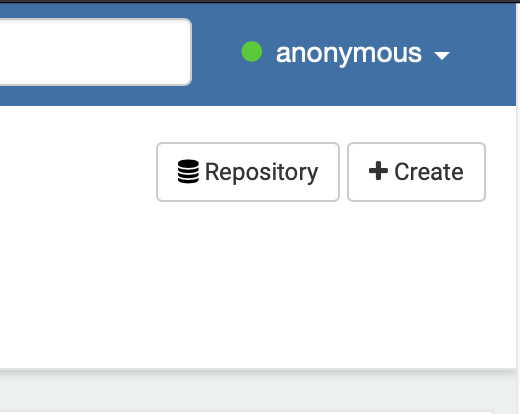

點擊create

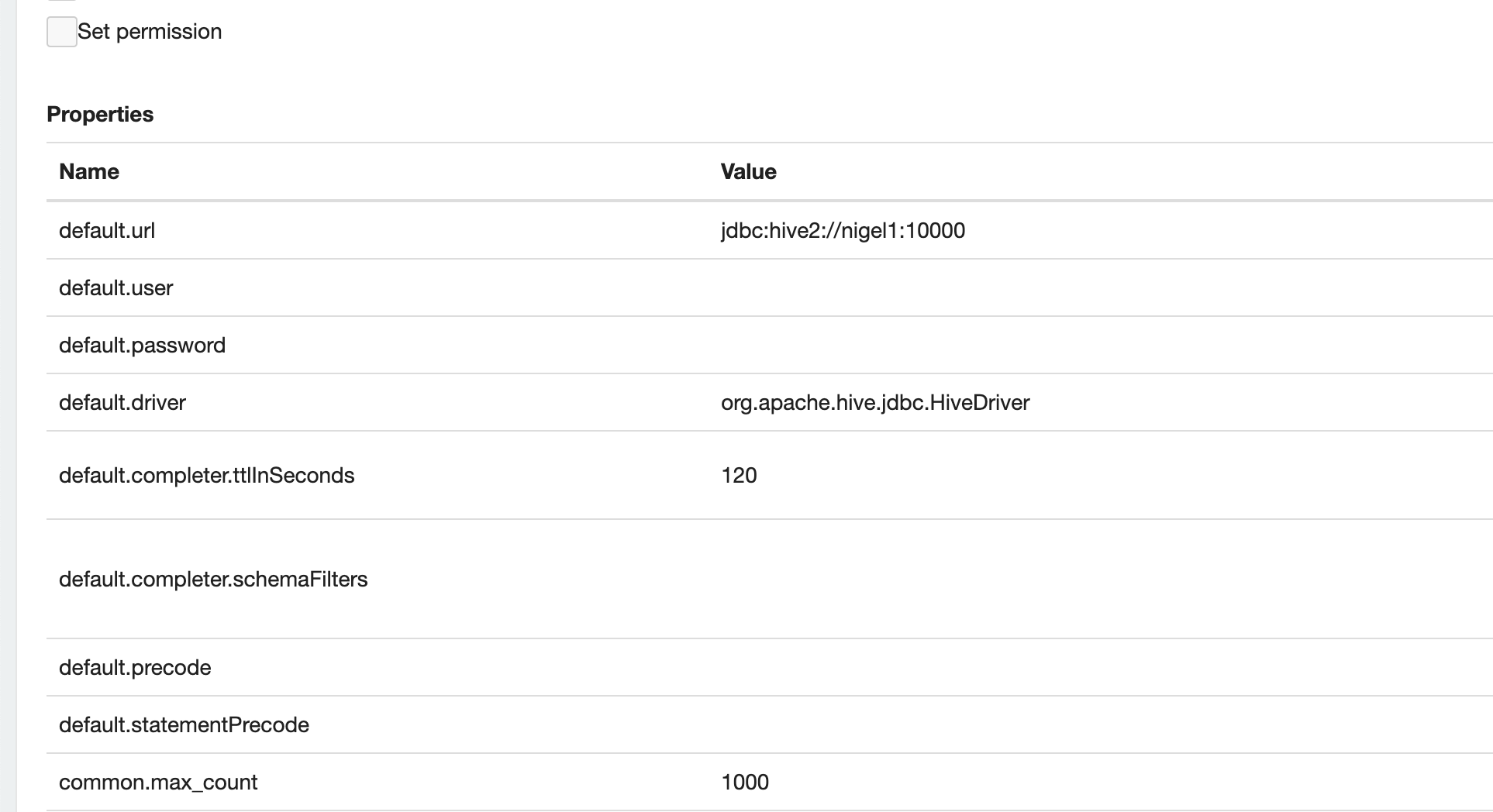

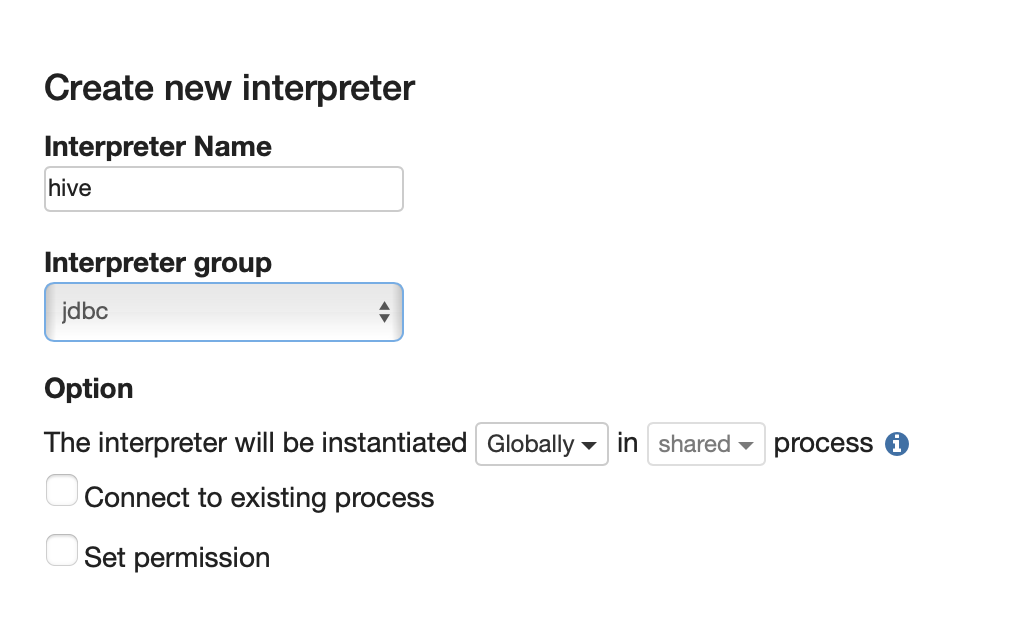

如圖依次設置

default.user為空

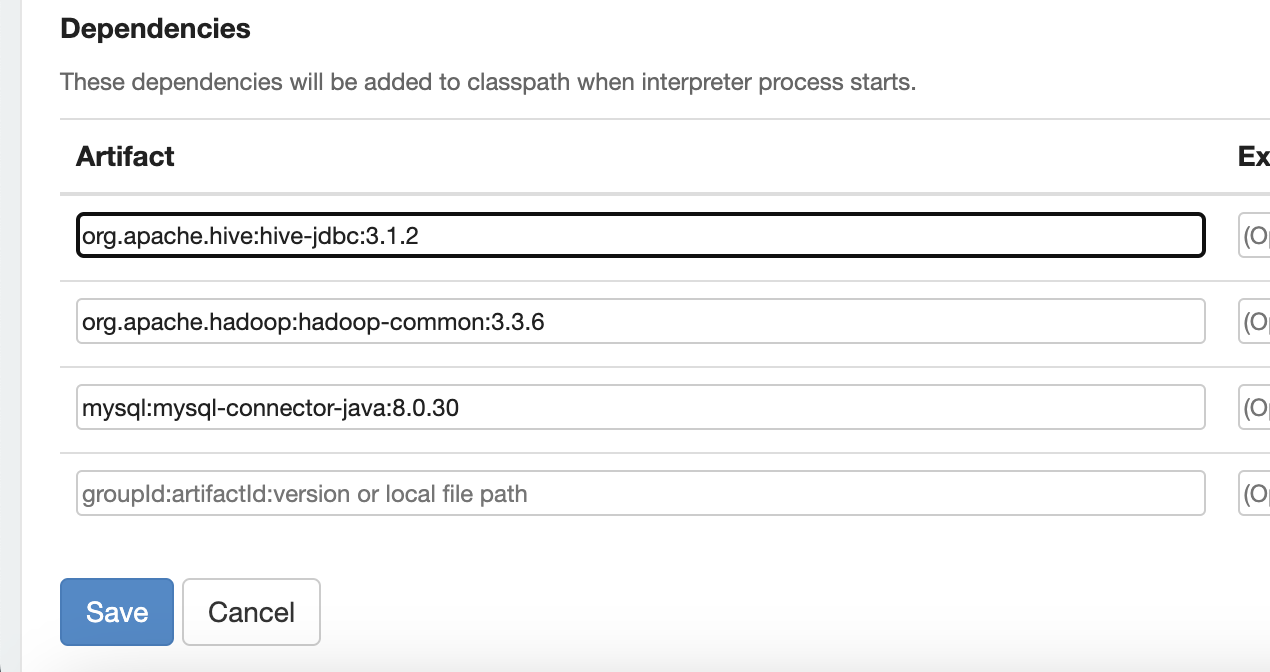

添加以下三個依賴

org.apache.hive:hive-jdbc:3.1.2

org.apache.hadoop:hadoop-common:3.3.6

mysql:mysql-connector-java:8.0.30

后 save
